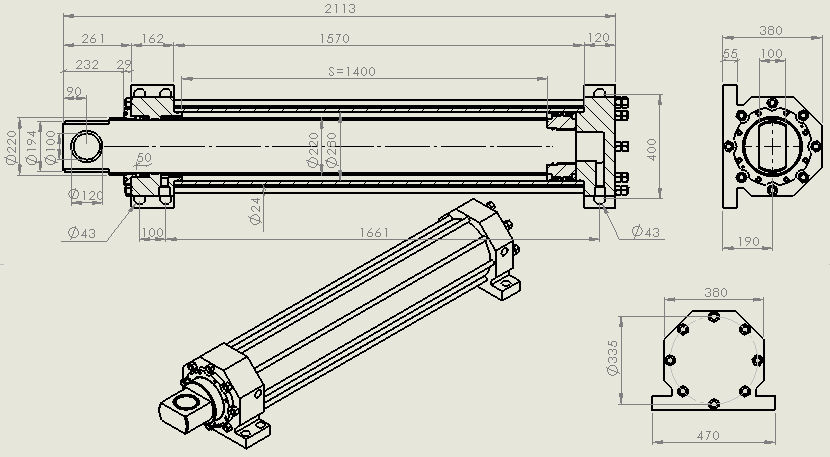

Tie Rod Type Hydraulic Cylinder 280x220x1400 mm

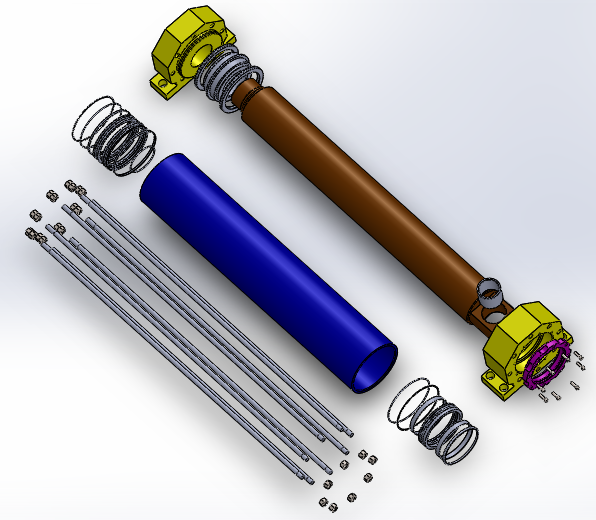

You Can Watch Collapses & Explode Of The Cylinder From This Link Blow :

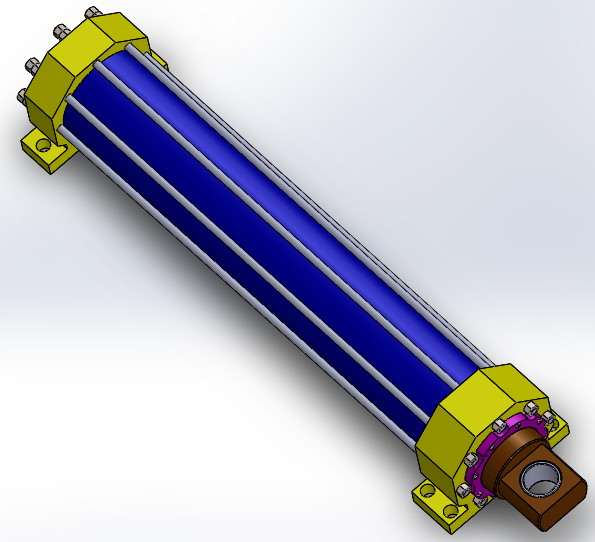

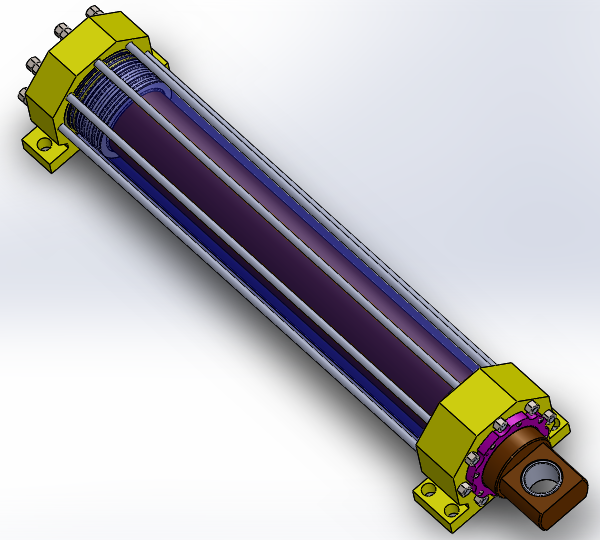

Big Tie Rod Type Hydraulic Cylinder:
This construction uses four or more high-strength threaded steel rods to hold the front and rear end caps to the cylinder barrel. This design is standard for NFPA (National Fluid Power Association) industrial cylinders and is known for its durability and serviceability. Leading manufacturers like Bosch Rexroth and AVENTICS produce these cylinders with key features such as high-tensile steel tie rods with rolled threads, one-piece ductile iron bearings, and advanced wear-resistant sealing systems .
Flat Foot Fixed Mount (Style "B"):
The "Flat Foot" or "Foot Mount" (often designated as Style "B") consists of two mounting feet, one bolted to the front end cap and one to the rear end cap .
· "Fixed" Meaning: This is a rigid mount. The cylinder is bolted down by its feet and does not pivot. The mounting plane is offset from the cylinder's centerline.
· Critical Consideration: Unlike centerline mounts (like trunnions), foot mounts impose a bending moment on the cylinder barrel when the cylinder pushes or pulls. For a cylinder this large (280 mm bore), this bending stress is significant and must be accounted for in the machine design .
-
Step 1: Flat Foot Fixed Mount (Style "B")
