⭐ 𝑬𝒍𝒆𝒄𝒕𝒓𝒊𝒄 𝒄𝒂𝒓 𝑫𝒖𝒃𝒊𝒏𝒂 𝑬𝒗𝒐 ⭐

Project from 3D constructor - https://dubina.biz

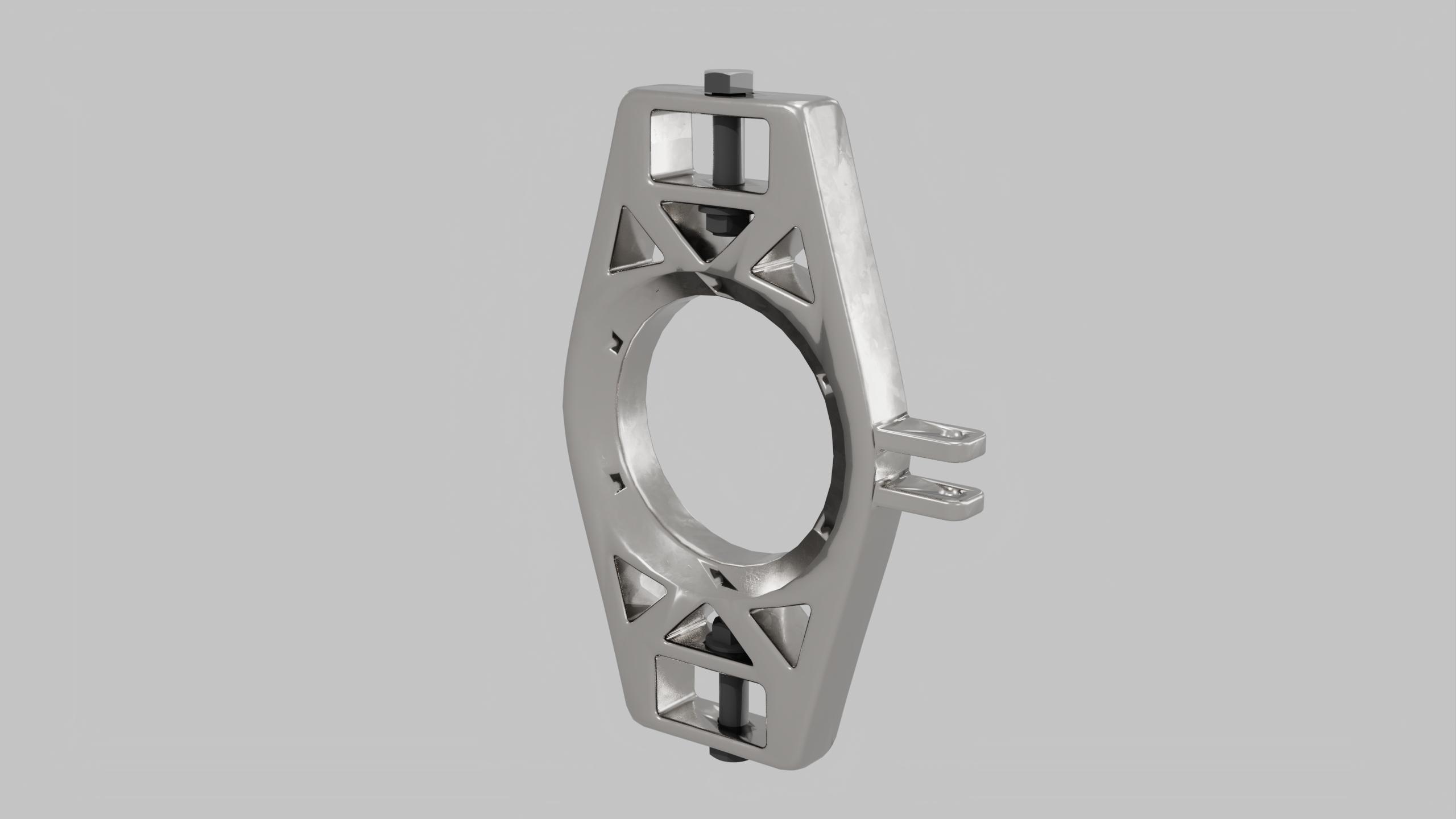

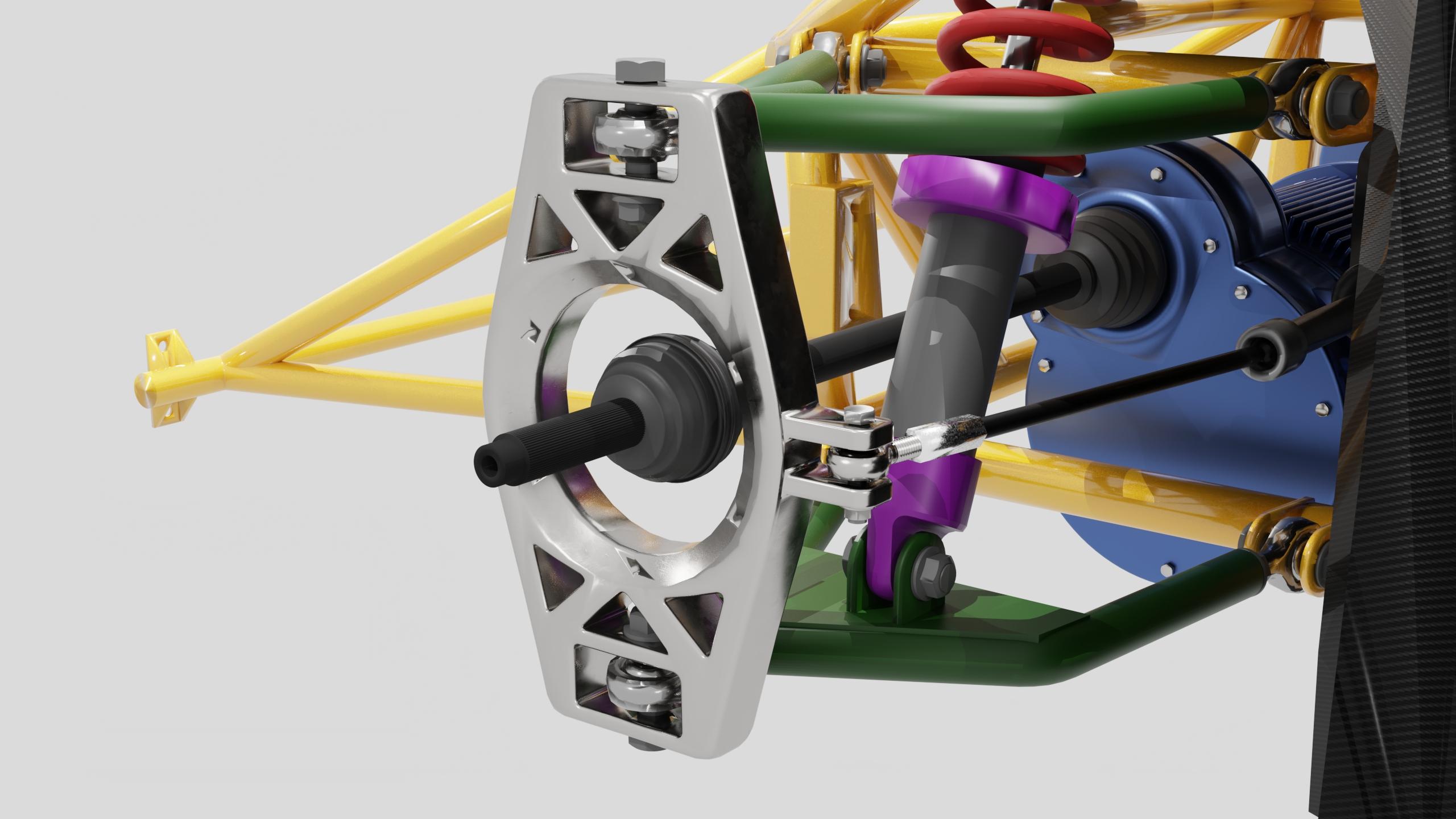

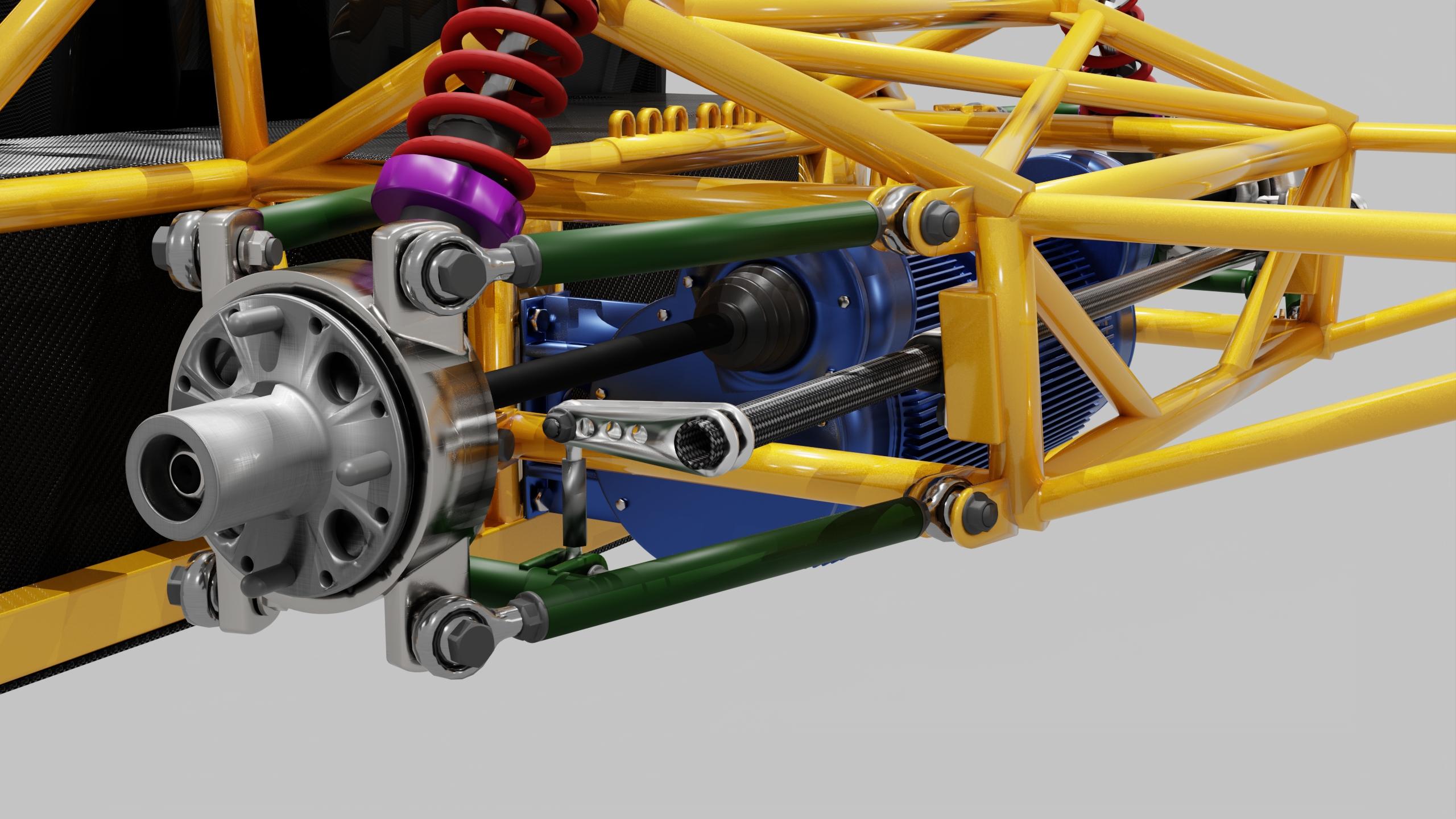

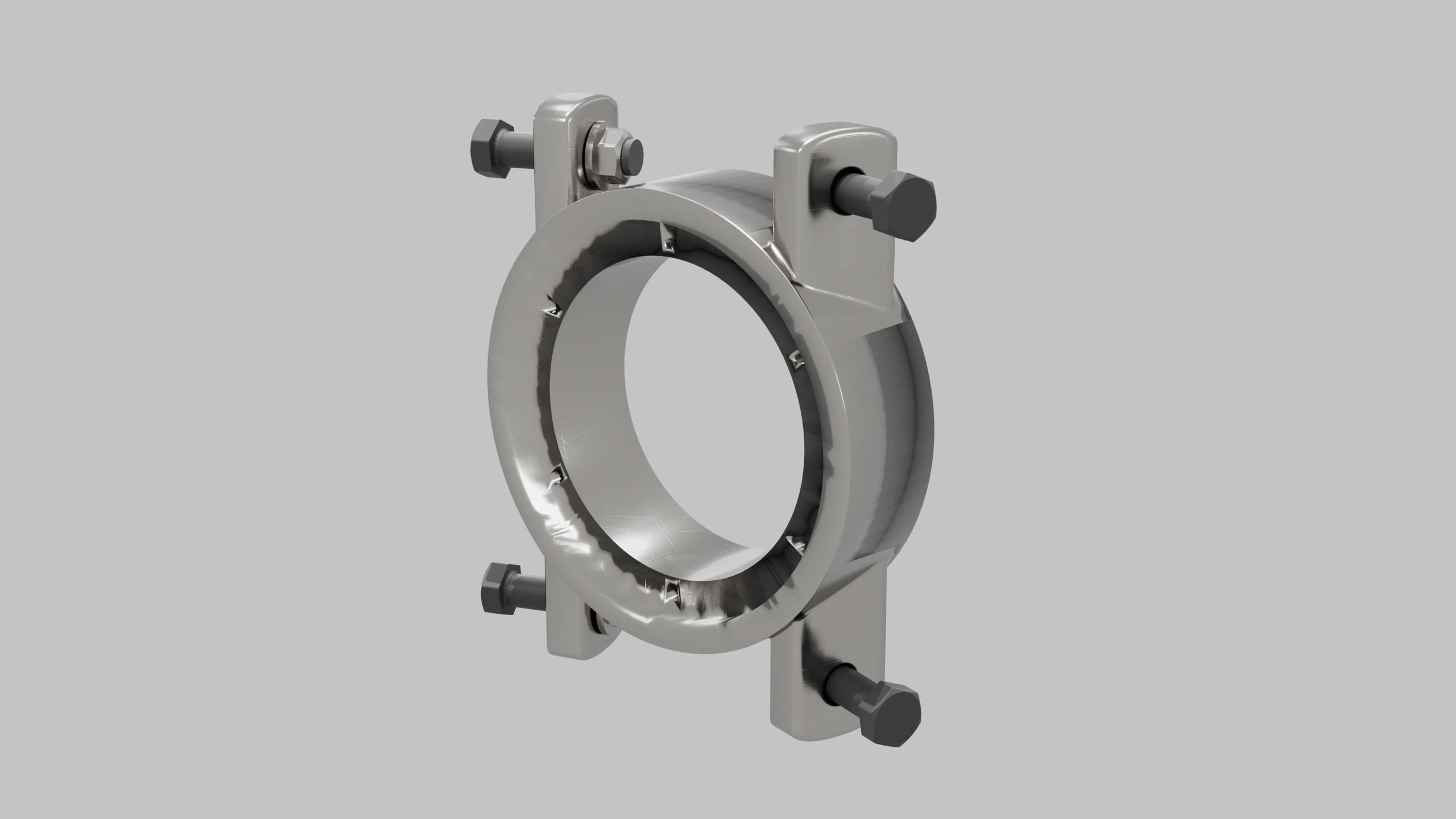

The steering knuckle in a double wishbone independent suspension is a suspension element that connects the upper and lower suspension arms and allows the front wheel to rotate during turns. This element is also known as a pendulum knuckle or pendulum bushing. It provides stability and maintains the wheel in a vertical plane. The design of the double wishbone suspension allows you to adjust the angle of the wheel to optimize handling and traction. The knuckle body has a groove with holes for installing the wheel hub. The knuckle in the rear double wishbone independent suspension is a suspension element that connects the upper and lower arms to the wheel hub, providing stability and maintaining the wheel in a vertical plane. There are four ears on the knuckle to attach the suspension arms. The car does not have mechanical brakes, the brake in the car is electronic, the car is braked by engines. Therefore, there are no mounts for the brake disc on the knuckles. The suspension knuckles are made of structural aluminum alloy.
