Special Pneumatic Cylinder

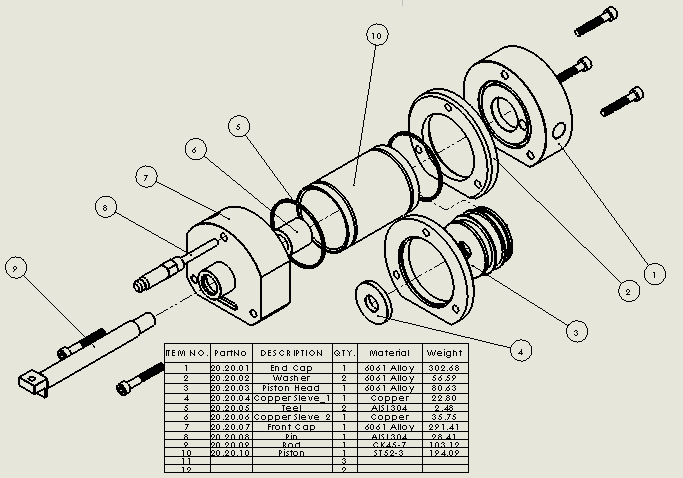

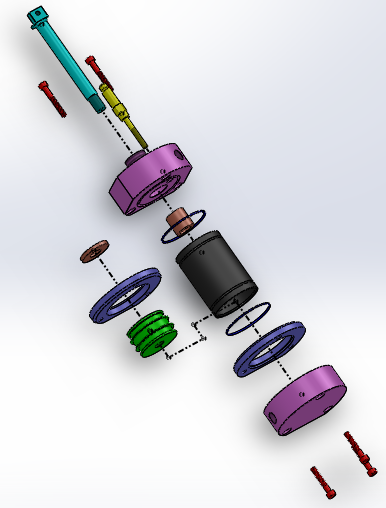

You Can Watch Collapses & Explode Of The Cylinder From This Link Blow :
What is a Stopper Cylinder?
A stopper cylinder (also called a stop cylinder or pneumatic stop) is a specialized pneumatic actuator designed to precisely stop and position moving workpieces or pallets on conveyor lines and automated assembly systems . Unlike standard cylinders that provide linear motion, stopper cylinders integrate a robust stopper pin or lever mechanism that pops up to block advancing objects and retracts to allow them to pass .
The core function is to provide ultra-high positioning accuracy with excellent repeatability, surpassing pneumatic or electric braking alternatives . These cylinders are engineered to withstand significant impacts, with some models rated to stop loads up to 90kg .
-

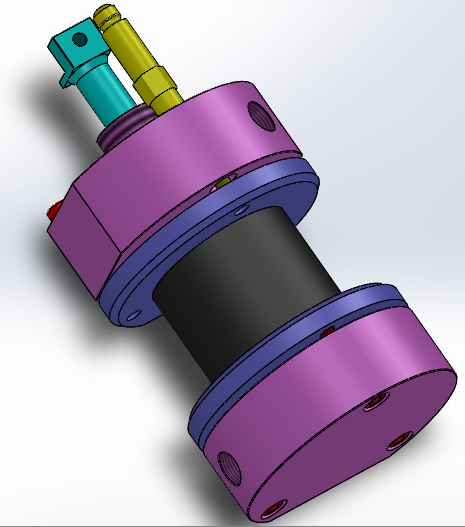

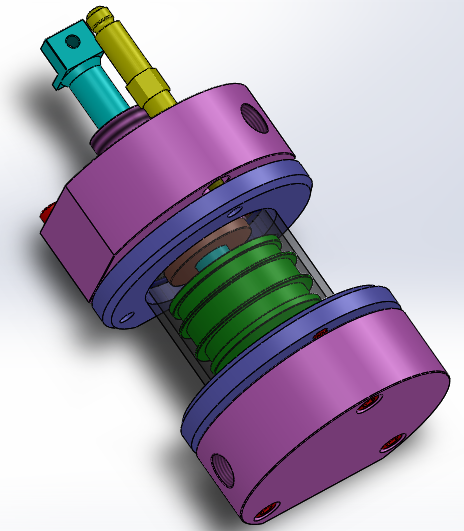

Step 1: Special Pneumatic Cylinder
