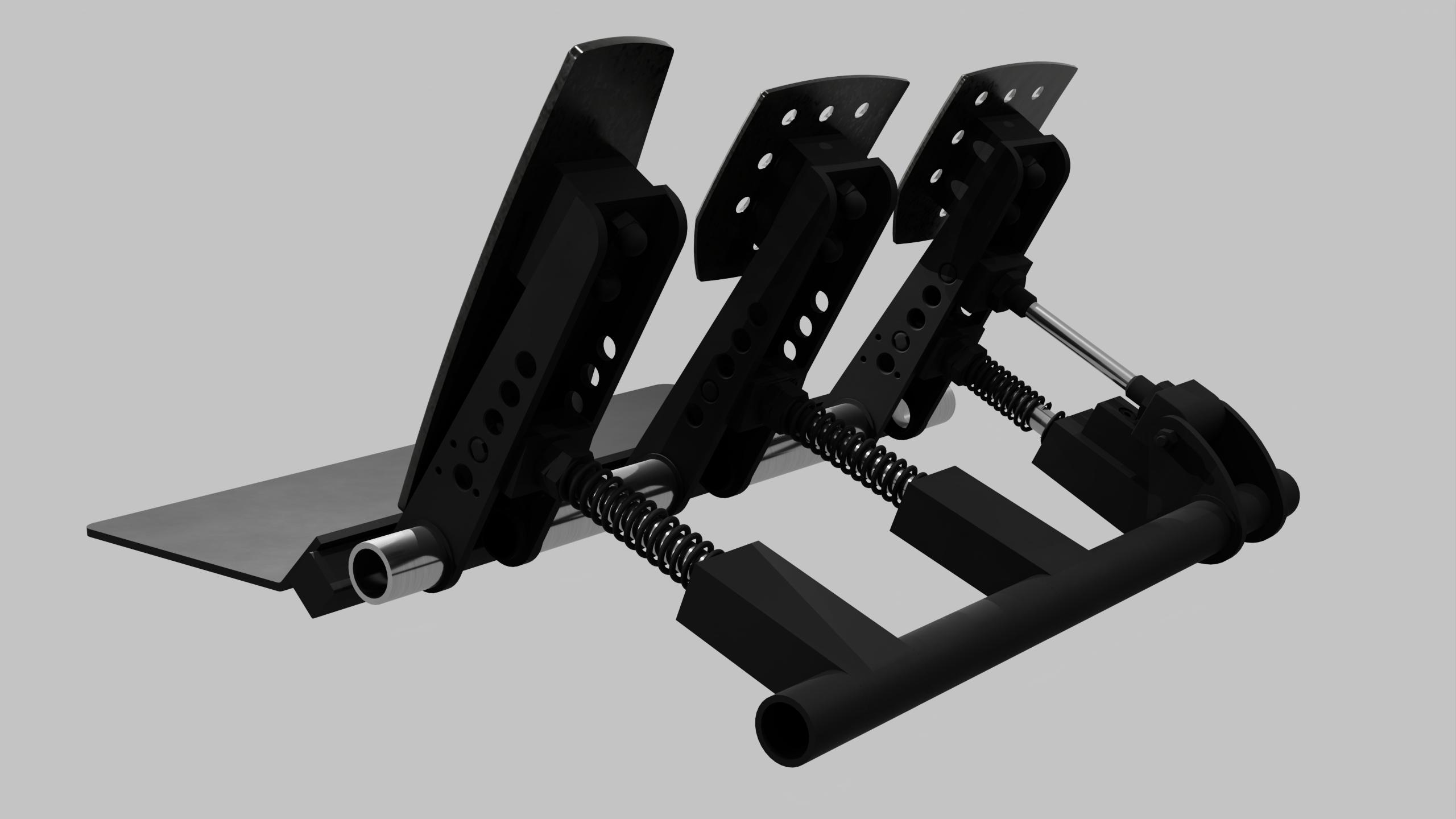

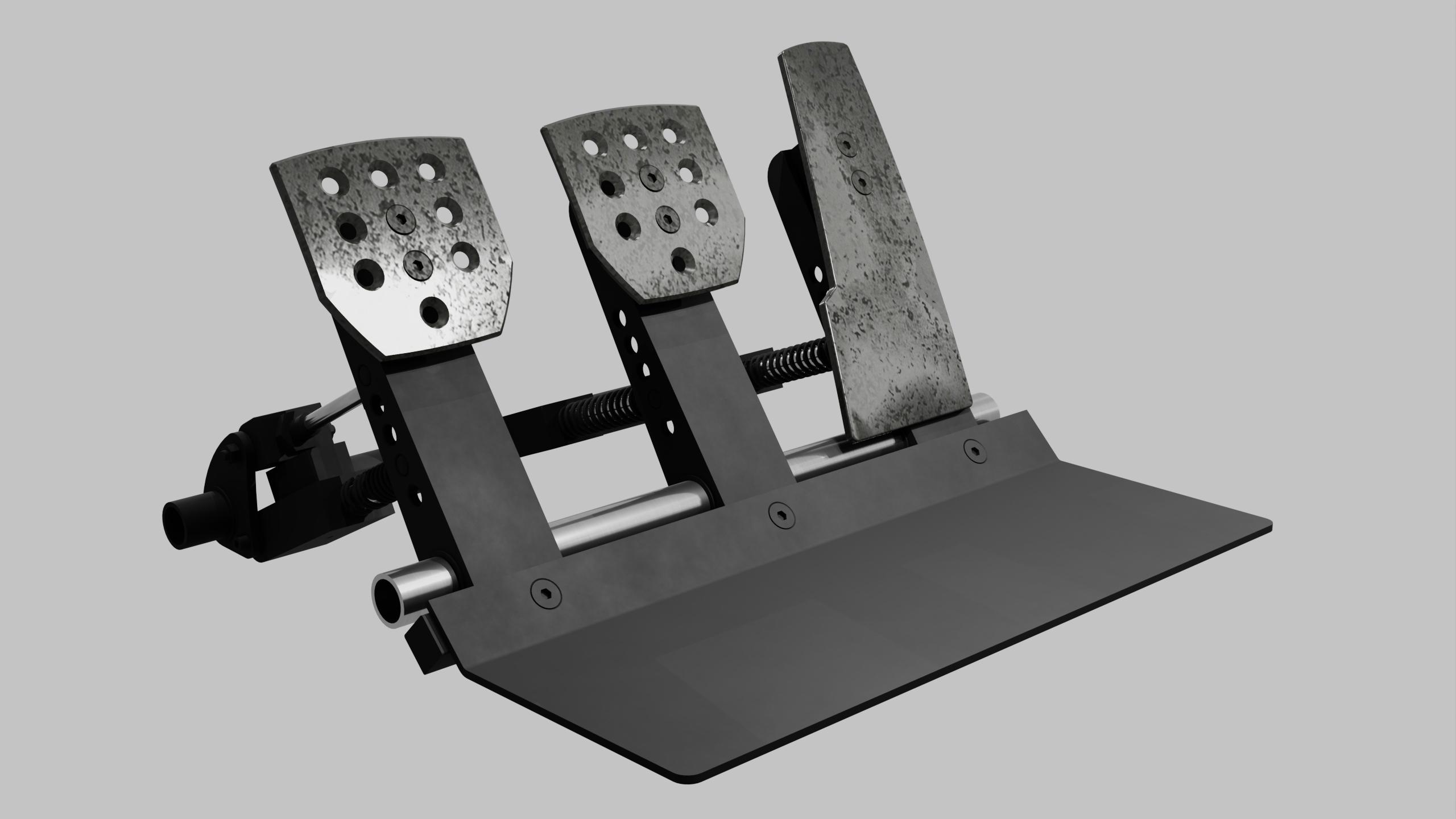

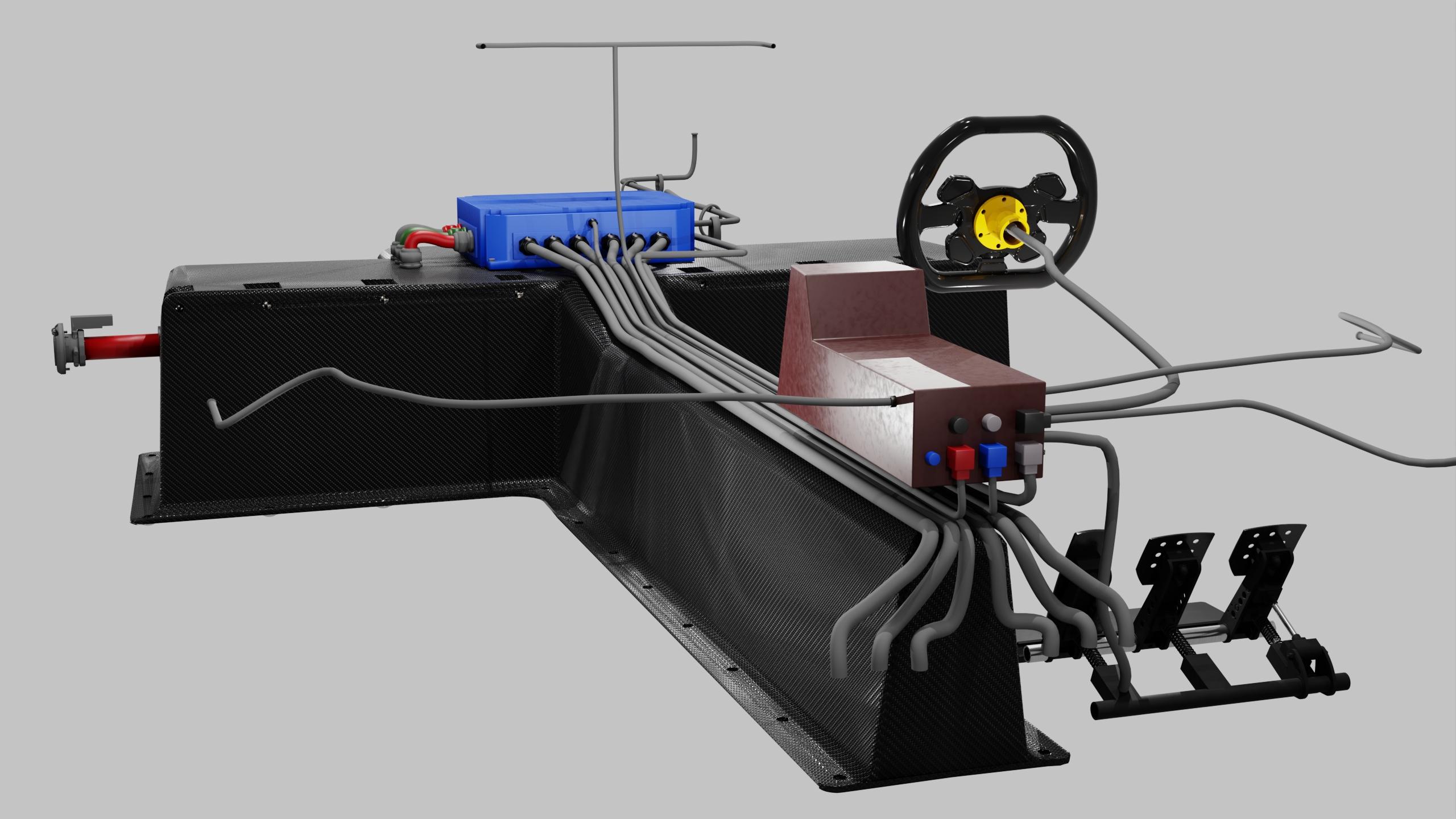

The pedal unit in the Dubina Evo car consists of three pedals. The left pedal is the parking brake, the center is the brake pedal, and the right is the current pedal. The pedals are made of aluminum structural alloy. The pedals adjust the position of the pedal plates, the angle of inclination, and the spring stiffness. The current and brake pedals are electronic. They are controlled through a central microcontroller. When the brake pedal is pressed, the shaft and magnet move simultaneously. Magnetic sensors on the printed circuit board detect the length of the magnet's movements and provide output signals to the microcontroller. The microcontroller processes the signals and controls the motors. Pedals with a magnetic sensor are highly accurate and reliable because they do not have rubbing parts that are subject to wear. The parking brake is mechanical. When you press the parking brake pedal, the steel cable pulls out the stopper, which falls into the gear groove installed on the drive shaft and stops it. The pedals are installed on the cockpit floor for ease of use. The size of the pedal block is 43x43x28 ​​cm.

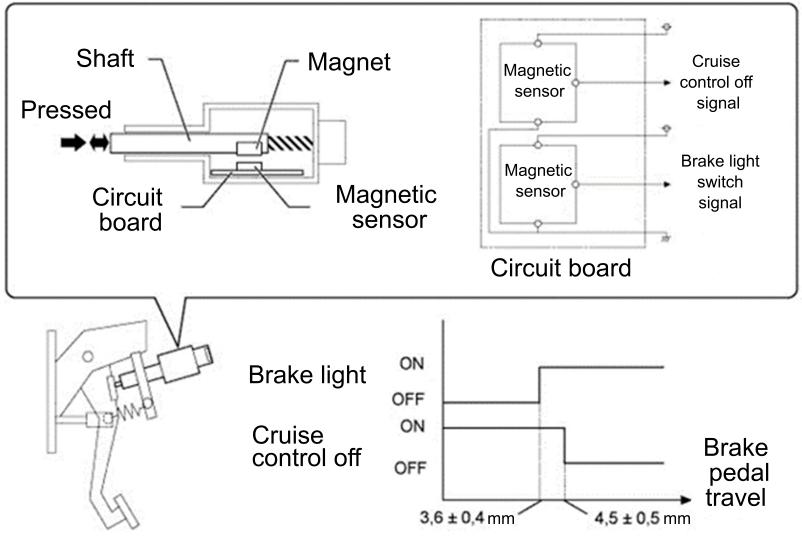

Pedal operation scheme
