S Gayathri
S Gayathri
12 Jul, 2023 10:09 PM

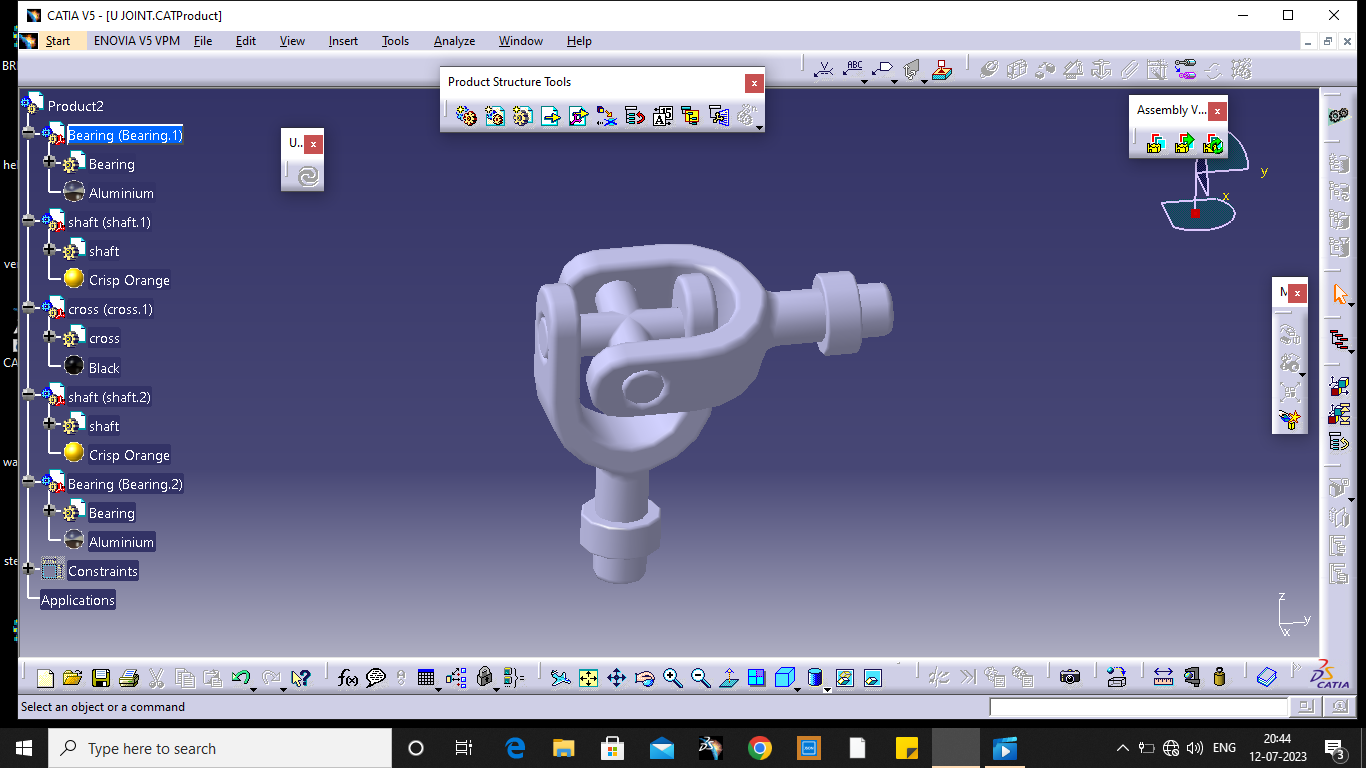

Apply materials is not applied to the universal joint while it is showing in specification tree



Doug Nicholson
Doug Nicholson
Jul 13, 2023

You need to change your view style to Material view. This icon and it should be one of the choices. It is a similar cylinder with a speckled appearance to it.


S Gayathri
S Gayathri
Jul 13, 2023

I followed your answer and i got result.
