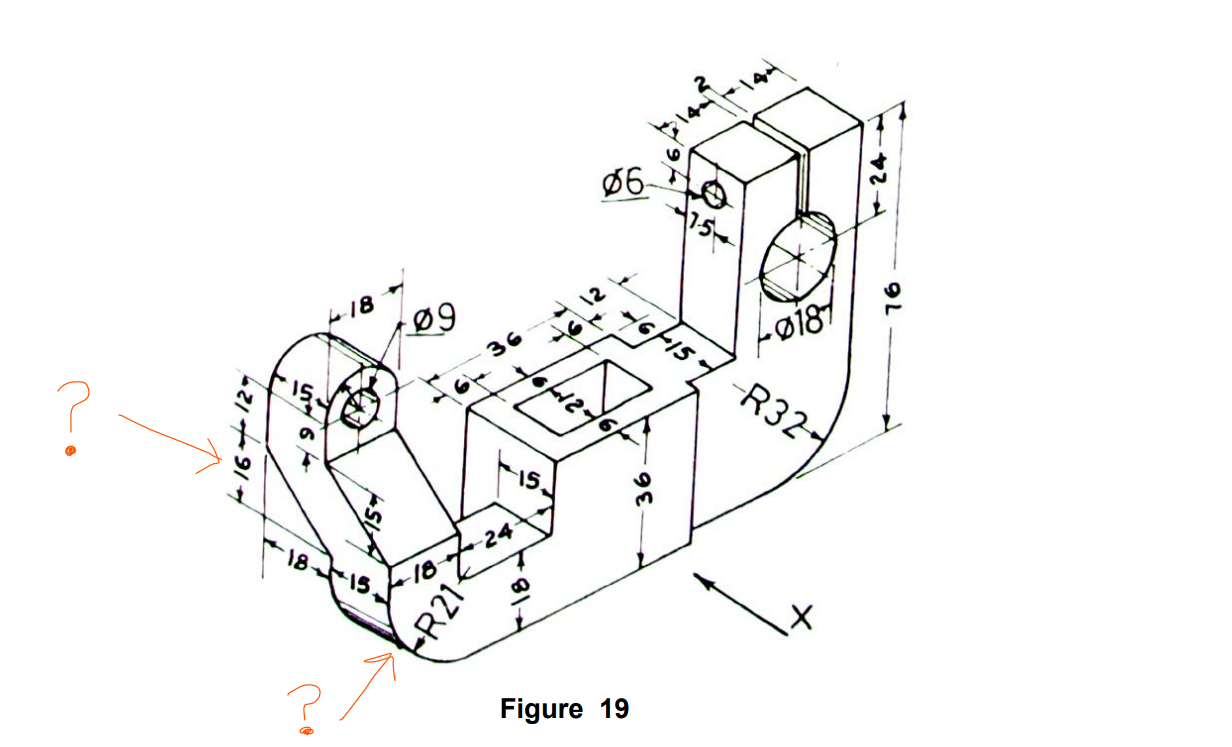

I need help with this 3d drawing in AutoCAD
I didn't know how to draw that arc like not sure what tool to use, and also, I wanna know that distance from where to where exactly.
it seems like it needs more views to draw this object properly, what do you think guys?
1 Answer
You'll want to use the isocircle command under ellipse for the filets. But yes, that drawing looks like it's missing some critical dimensions on that end.
