How to reverse engineer this STL file?

Morteza Padarlar
Morteza Padarlar
19 Oct, 2019 09:28 PM

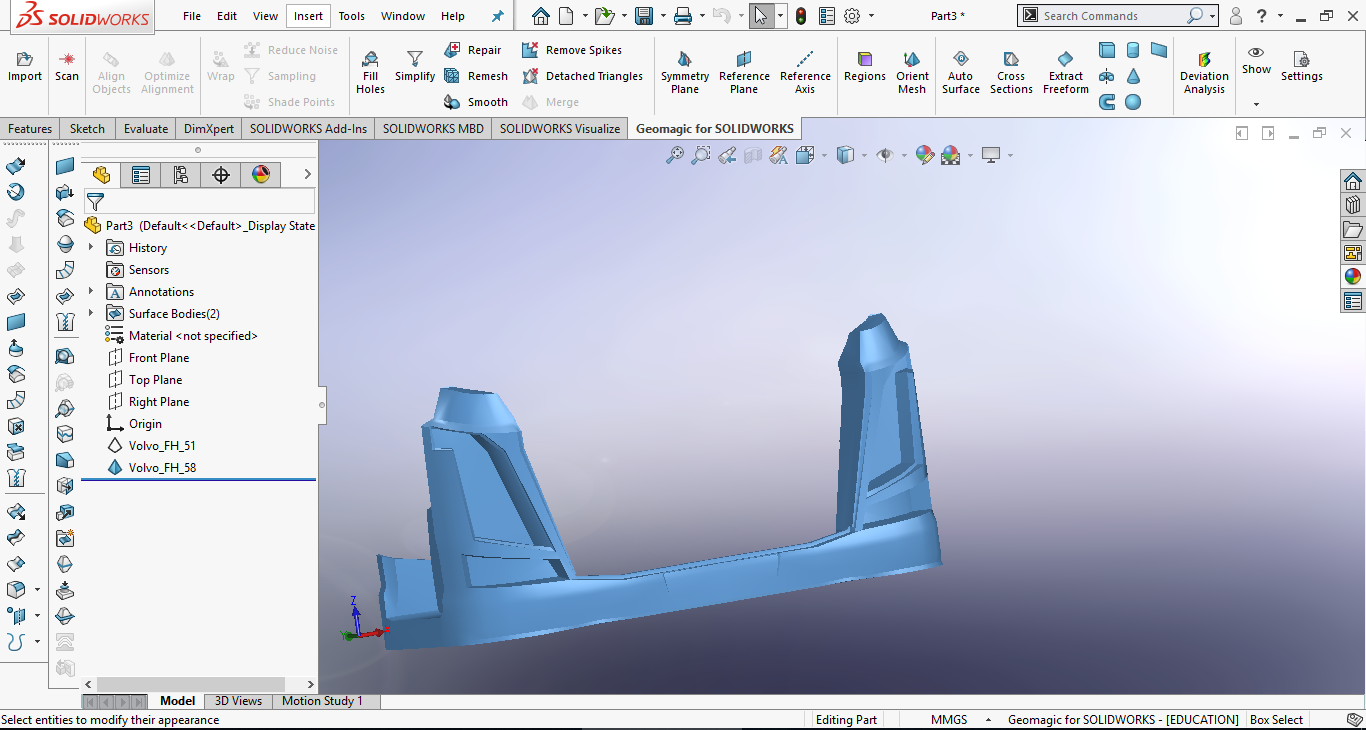

I want to change STL files to solid body.
But this piece is very complicated...
Help me please

3.png 3.png Volvo_FH_58.stl

Accepted answer

FredSWUG
FredSWUG
Answered on 19 Oct, 2019 11:00 PM

Just need to patch one hole, and the part will become a solid.
Here's half of the model. It looks symmetrical, so just mirror it.

Volvo_FH_58.STEP

0 Other answers
