S Gayathri
S Gayathri
30 Mar, 2023 04:25 PM

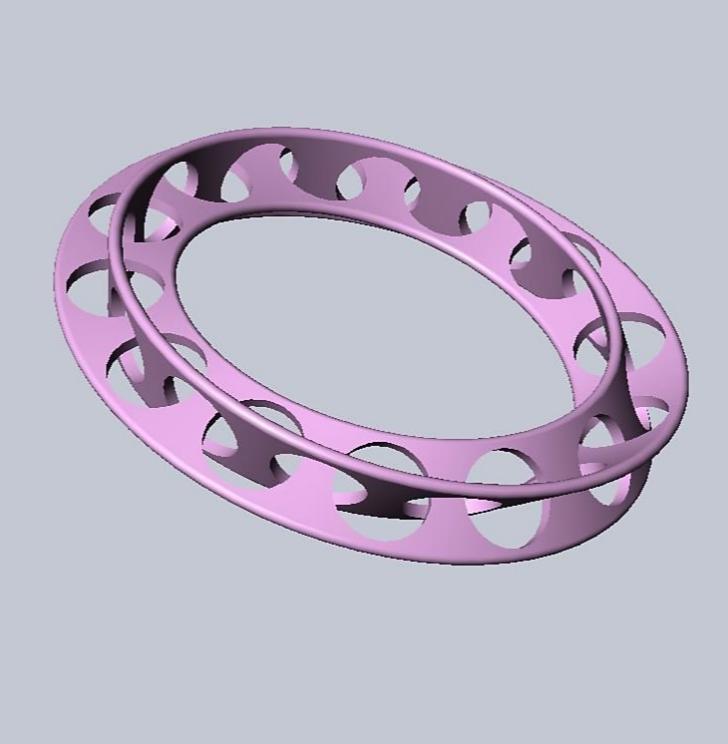

How the self-intersecting loop is created with holes.

Model credits: Yang Bevis from Weekly challenge group.



kantoku
kantoku
Mar 31, 2023

Good job.


I have also created and published one that deforms with parameters before.


I have also created and published an add-in for Fusion360 that can create similar shapes.

https://github.com/kantoku-code/Fusion360_Two-turn_Mobius_strip


Jack K
Jack K
Mar 31, 2023
kantoku Good job.I have also created and published one that deforms with parameters before. Grabcad model Mobius_Strip-2round&holes CATIA V5...

I like your tutorial Kantoku. Splitting with spheres is great!


S Gayathri
S Gayathri
Mar 31, 2023
kantoku Good job.I have also created and published one that deforms with parameters before. Grabcad model Mobius_Strip-2round&holes CATIA V5...

Thank you kantoku.
